F401 Double Flanged Short Type

Double Flanged Butterfly Valve Characteristic : This valve is to splice the rubber liner on the body the strength more highly and the seal more reliably for the seat. There is O-ring casted on the seal surface of the seat negates need for flange gaskets.

Double Flanged Butterfly Valve Short Type (Our Series F401)

Characteristic : This valve is to splice the rubber liner on the body the strength more highly and the seal more reliably for the seat. There is O-ring casted on the seal surface of the seat negates need for flange gaskets.

Design Standard: BS5155

Face to Face: ISO 5752 basic series 13 (short) / DIN 3202 part 1 series F16

Connection: ANSI DIN BS Flanges

Working Pressure: 0.6 Mpa to 1.6 Mpa

Operator: Worm Gear Pnematic & Electric Actuator

Size: 2" to 48"

double flanged butterfly valve

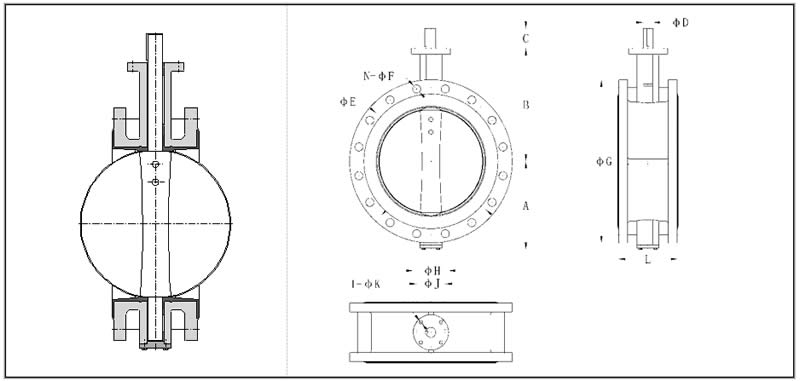

Dimensions List (mm)

Size		A	B	C	D	E			N-F			G			H	J	I- K	L
mm	inch					ANSI150	PN10	PN16	ANSI150	PN10	PN16	ANSI150	PN10	PN16
50	2	70	130	32	12.7	120.7	125	125	4-19	4-18	4-18	152	165	165	90	70	4-9.5	108
65	2½	75	140	32	12.7	139.7	145	145	4-19	4-18	4-18	178	185	185	90	70	4-9.5	112
80	3	85	150	32	12.7	152.4	160	160	4-19	4-18	8-18	191	200	200	90	70	4-9.5	114
100	4	104	160	32	15.9	190.5	180	180	8-19	8-18	8-18	229	220	220	90	70	4-9.5	127
125	5	112	180	32	19.1	215.9	210	210	8-22	8-18	8-18	254	250	250	90	70	4-9.5	140
150	6	130	200	32	19.1	241.3	240	240	8-22	8-22	8-22	279	285	285	90	70	4-9.5	140
200	8	160	230	38	22.2	298.5	295	295	8-22	8-22	12-22	343	340	340	125	102	4-11.5	152
250	10	194	260	38	28.6	362	350	355	12-25	12-22	12-26	406	395	405	125	102	4-11.5	165
300	12	220	300	38	31.8	431.8	400	410	12-25	12-22	12-26	483	445	460	125	102	4-11.5	178
350	14	270	360	45	31.8	476.3	460	470	12-29	16-22	16-26	533	505	520	125	102	4-11.5	190
400	16	305	390	51	33.3	539.8	515	525	16-29	16-26	16-30	597	565	580	210	165	4-22	216
450	18	332	420	51	38.1	577.9	565	585	16-32	20-26	20-30	635	615	640	210	165	4-22	222
500	20	362	470	64	41.3	635	620	650	20-32	20-26	20-33	699	670	715	210	165	4-22	229
600	24	415	540	70	50.8	749.3	725	770	20-35	20-30	20-36	813	780	840	210	165	4-22	267
700	28	515	565	72	55	863.6	840	840	28-35	24-30	24-36	927	895	910	300	254	8-18	292
750	30	545	612	72	55	914.4	900	900	28-35	24-33	24-36	984	970	970	300	254	8-18	318
800	32	565	640	72	55	977.9	950	950	28-41	24-33	24-39	1060	1015	1025	300	254	8-18	318
900	36	605	680	77	75	1085.9	1050	1050	32-41	28-33	28-39	1168	1115	1125	300	254	8-18	330
1000	40	685	760	85	85	1200.2	1160	1170	36-41	28-36	28-42	1289	1230	1255	300	254	8-18	410
1050	42	730	820	85	85	1257.3	――	――	36-41	――	――	1346	――	――	300	254	8-18	410
1100	44	730	820	85	85	1314.5	1270	1270	40-41	32-36	32-42	1403	1340	1355	300	254	8-18	450
1200	48	790	880	150	92	1422.4	1380	1390	44-41	32-39	32-48	1511	1455	1485	350	298	8-22	470
