Gate Valve
BS 3464 gate valve me
Available medium: water steam
Working temperature: ≤200℃
Face to face: BS3464
Flange dimensions: BS4504; BS10 table D
Materials:
Body & bonnet: cast iron
Seat: cast brass
Disc: cast iron + brass
Stem: stainless steel
Packing: graphite
Stem nut: cast brass
Gasket: graphite

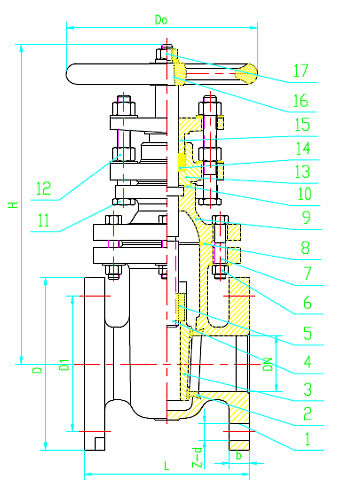

Dimensions (Flange Dimensions:BS4504):
| DN | L | D | D1 | b | Z-∮d | D0 | H |
| 50 | 146 | 165 | 125 | 20 | 4-18 | 160 | 282 |
| 65 | 159 | 185 | 145 | 20 | 4-18 | 160 | 312 |
| 80 | 165 | 200 | 160 | 22 | 8-18 | 200 | 340 |
| 100 | 172 | 220 | 180 | 22 | 8-18 | 200 | 405 |
| 125 | 190 | 250 | 210 | 24 | 8-18 | 240 | 472 |
| 150 | 210 | 285 | 240 | 24 | 8-23 | 240 | 540 |
| 200 | 241 | 340 | 295 | 26 | 12-23 | 320 | 713 |
| 250 | 273 | 405 | 355 | 28 | 12-27 | 320 | 834 |
| 300 | 305 | 460 | 410 | 28 | 12-27 | 360 | 885 |
