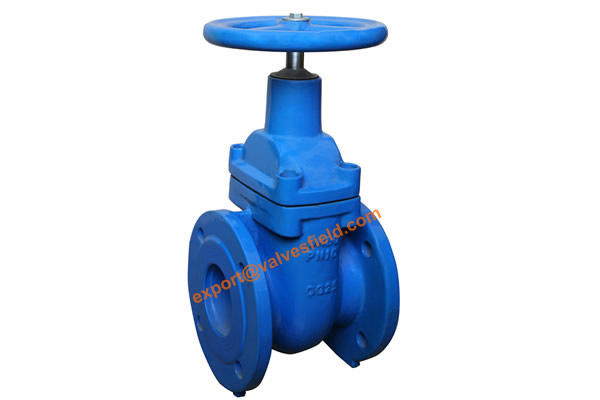

DIN 3352 F4 Metal Seated Non Rising Stem heavy type are the perfect solution as a closing device in pipeline systems. Be suitable in applications with water supply, sewage treatment and neutral liquids in the mining industry, enterprises and high buildings.
We design and manufacture BS5163, DIN3352, AWWA C515/509, SABS664, AS2638, JIS B2062, socket end resilient seated gate valve etc.
1. Standard:DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515
Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25
2. Type:Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem
3. Material
a. Body:Ductile iron GGG40/50 or Cast IronGG25
b. Wedge:Ductile iron GGG40/50+EPDM/NBR or metal seated
c. Stem:stainless steel 2Cr13 , SS304,SS316
d. Bolt and Nuts:Carbon Steel with zinc plated or SS304,316
4. Port Size:DN40-DN600
5. Pressure:PN10/PN16/PN25
6. Media:Water, oil, gas, etc
7. Coating:Internal and external with fusion bonded epoxy coating min250μm
8. Packaging:Plywood case
