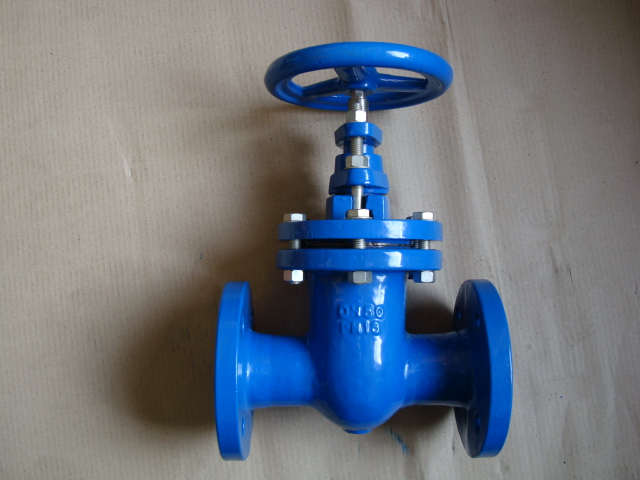

Cast Iron/ductile iron non rising stem BS5163 Gate Valves

Standard compliance:

1) Design and manufacture: BS5163, DIN 3352, JIS B2043, AWWA C509

2) Test and inspection: BS6755, DIN 3230, JIS B2003, API598

3) Face to face dimensions: BS5163: 1986, DIN 3202 F4-F5, JIS B2002, ANSI B16.10

4) Flanged end: BS4504, DIN 2532, JIS B2212, ANSI B16.10/ANSI B16.50

Specifications:

1) Size: Soft seat: 1-1/2" to 24"; Metal seat: 1-1/2"to 64"

2) Class: PN10, PN16.125LB, 150LB

3) Type: Bolted Bonnet, non rising stem/rising stem, NBR/EPDM/brass/bronze/stainless steel seat ring.

4) Material: CAST IRON, DUCTILE IRON

5) Operation: Hand wheel, gear, square head
